The degree of strong Bai is divided into Du grades according to the mechanical properties. According to relevant standards, the performance grade of bolts can be divided into more than 10 grades, such as 3.6, dao4.6, 4.8, 5.6, 6.8, 8.8, 9.8, 10.9 and 12.9. Among them, bolts of grade 8.8 and above are made of low-carbon alloy steel or medium carbon steel and heat-treated (quenching and tempering), which are generally called high-strength bolts, and the rest are commonly referred to as ordinary bolts. The bolt performance grade label consists of two parts, which respectively represent the nominal tensile strength and yield strength ratio of bolt material. For example:

性能等級4.6級的螺栓，其含義是：

The meaning of bolts with performance grade 4.6 is as follows:

1、螺栓材質公稱抗拉強度達400MPa級；

1. The nominal tensile strength of bolt material is 400MPa;

2、螺栓材質的屈強比值為0.6；

2. The yield strength ratio of bolt material is 0.6;

3、螺栓材質的公稱屈服強度達400×0.6=240MPa級

3. The nominal yield strength of bolt material is 400 × 0.6 = 240mpa

性能等級10.9級高強度螺栓，其材料經過熱處理后，能達到：

After heat treatment, the material of high strength bolt with performance grade of 10.9 can reach the following requirements:

1、螺栓材質公稱抗拉強度達1000MPa級；

1. The nominal tensile strength of bolt material reaches 1000MPa;

2、螺栓材質的屈強比值為0.9；

2. The yield strength ratio of bolt material is 0.9;

3、螺栓材質的公稱屈服強度達1000×0.9=900MPa級

3. The nominal yield strength of bolt material is 1000 × 0.9 = 900MPa

只有把上述所講的內容設定好，我們的操作才算完成，如果您這邊在后續的過程中有任何的問題，歡迎致電或者是在網站上邊留言:電動扭矩扳手http://www.sxmingxi33.cn

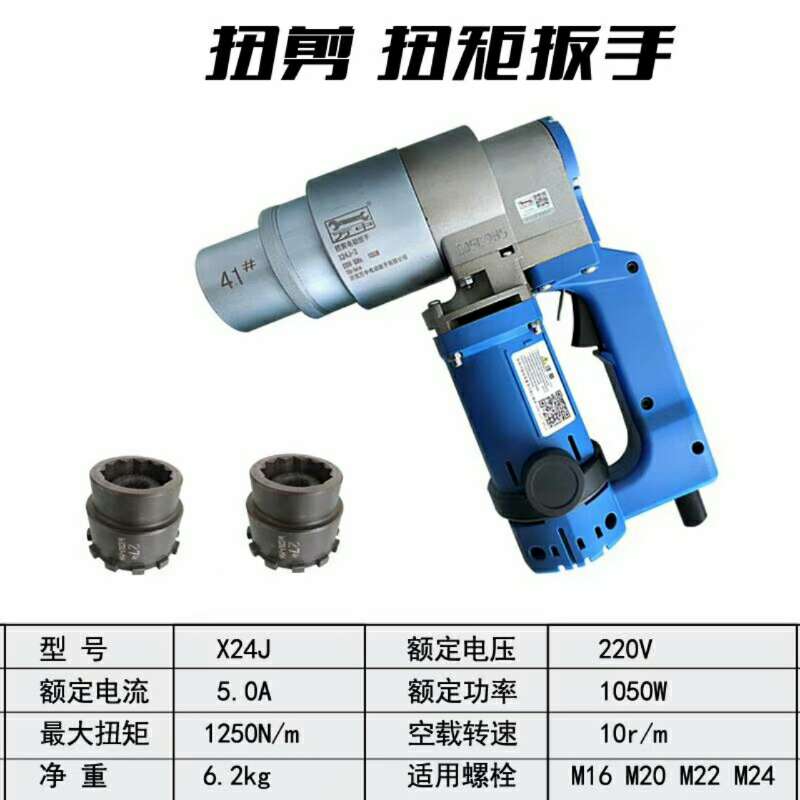

If you have any problems in the follow-up process, please call or leave a message on the website: electric torque wrench http://www.sxmingxi33.cn
